free form biomorphic structures

FEA analysis 4 [2.44]

Mesh Generation
Correcting Errors Within The Mesh
Previous PageHomeNext Page

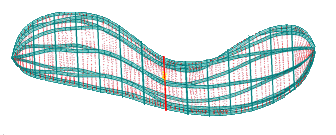

8 Applying the Loads & Supports.
Different type of loads are put onto the model after the mesh has been generated. In addition the support conditions are identified.

9 Forces & Moments
When the analysis is complete the software allows you to examine each of the members and provides output results regarding displacements moments and stresses. This output is used to confirm the member sizes.
